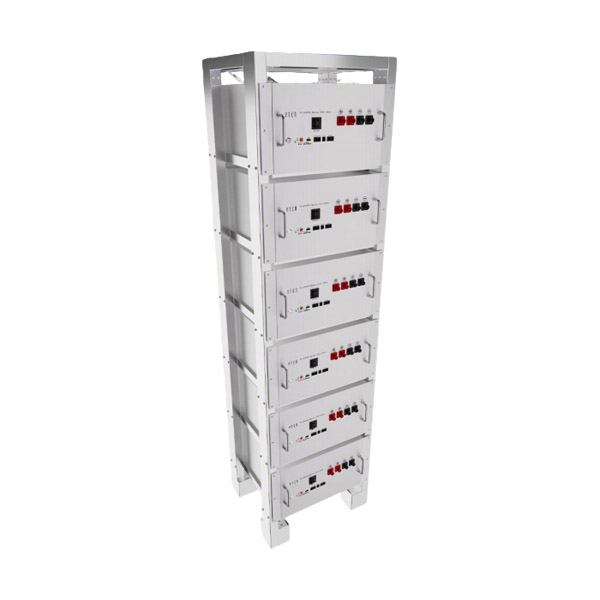

Base Station Energy Storage System
■ 51.2V (High Voltage) 100Ah 5.12kWh
■ 51.2V (High Voltage) 200Ah 10.24kWh
■ 51.2V (High Voltage) 300Ah 15.36kWh
■ Supports up to 32 units in parallel
■ Cycle Life: 6,000 cycles
■ Built-in 16S 100A BMS
■ Supports OEM/ODM Customization (Rechargeable battery specifically designed for solar inverters)
■ BMS Protocols Supported
■ PC-based software monitoring via RS485 interface
■ 5–10 Years of Technical Support
*The table is horizontally scrollable.
| Model | YT-LFP-51.2-205-10 | YT-LFP-51.2-205-10HV | YT-LFP-51.2-295-15 | YT-LFP-51.2-295-15HV |
|---|---|---|---|---|
| Rated Voltage(V) | 51.2 | 51.2 (Max 12 series) |
51.2 | 51.2 (Max 12 series) |
| Rated Current(A) | 205 | 295 | ||
| Rated Capacity(Wh) | 10496 | 15104 | ||
| Cell type | LiFePO4 | LiFePO4 | ||
| Maximum charging voltage | 56.8 | |||
| Minimum discharge voltage | 44 | |||
| Standard charging current | 100 | 150 | ||
| Standard discharge current | 200 | 300 | ||
| Max continuous charging current | 200 | 300 | ||
| Max continuous discharging current | 400 | 600 | ||
| Cycle life | >4000(80% DOD @0.2C) | |||
| Weight | 90KG | 132KG | ||
| Working temperature | Charging 0℃-45℃, Discharging -10℃-55℃ | |||
| Storage temperature | -20℃-50℃ | |||
| Communication | RS485 | RS485 | ||
| Warranty | 5 Years | |||
